| Ball Tip, Sharp, Blunt |
|
|
|
|

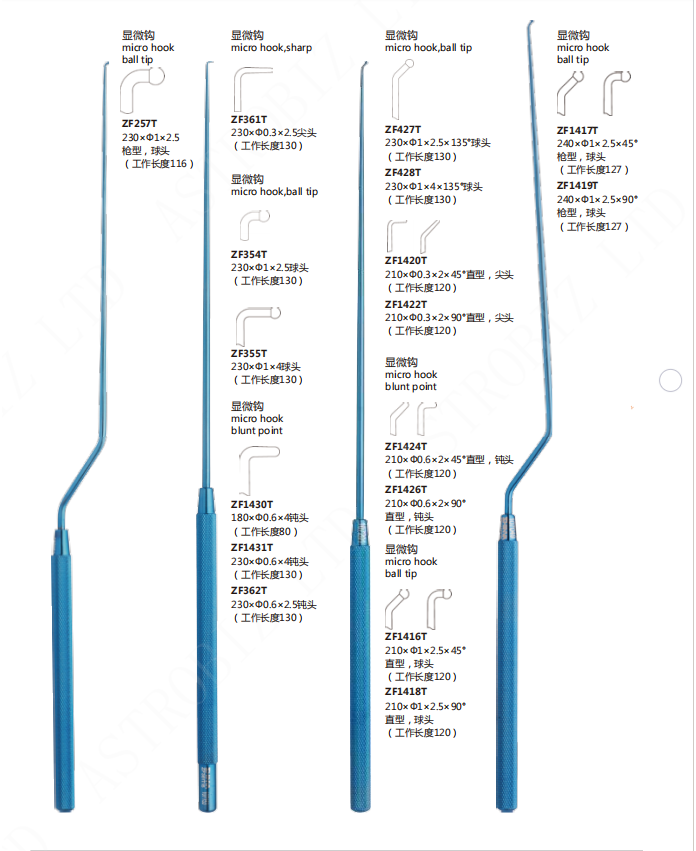

| ZF257T |
Micro hook, ball tip, gun-shaped |
230×Φ1×2.5 |
116 |
Ball tip, gun-shaped |
| ZF361T |
Micro hook, sharp, double – ended (2.5×135°) |
230×Φ0.3×2.5 (working length 130) |
130 |
Sharp tip, double – ended |
| ZF427T |
Micro hook, ball tip, 135° ball tip |
230×Φ1×2.5×135° (working length 130) |
130 |
Ball tip, 135° angle |
| ZF428T |
Micro hook, ball tip, 135° ball tip |
230×Φ1×4×135° (working length 130) |
130 |
Ball tip, 135° angle |
| ZF1417T |
Micro hook, ball tip, gun-shaped (45°) |
240×Φ1×2.5×45° (working length 127) |
127 |
Ball tip, gun – shaped, 45° |
| ZF1419T |
Micro hook, ball tip, gun-shaped (90°) |
240×Φ1×2.5×90° (working length 127) |
127 |
Ball tip, gun – shaped, 90° |
| ZF354T |
Micro hook, ball tip |
230×Φ1×2.5 (working length 130) |
130 |
Ball tip |
| ZF355T |
Micro hook, ball tip |
230×Φ1×4 (working length 130) |
130 |
Ball tip |
| ZF1420T |
Micro hook, sharp, straight (45°) |
210×Φ0.3×2×45° (working length 120) |
120 |
Sharp tip, straight, 45° |
| ZF1422T |
Micro hook, sharp, straight (90°) |
210×Φ0.3×2×90° (working length 120) |
120 |
Sharp tip, straight, 90° |
| ZF1424T |
Micro hook, blunt, straight (45°) |
210×Φ0.6×2×45° (working length 120) |
120 |
Blunt tip, straight, 45° |
| ZF1426T |
Micro hook, blunt, straight (90°) |
210×Φ0.6×2×90° (working length 120) |
120 |
Blunt tip, straight, 90° |
| ZF1416T |
Micro hook, ball tip, straight (45°) |
210×Φ1×2.5×45° (working length 120) |
120 |
Ball tip, straight, 45° |
| ZF1418T |
Micro hook, ball tip, straight (90°) |
210×Φ1×2.5×90° (working length 120) |
120 |
Ball tip, straight, 90° |
| Bayonet – Shaped, Etc. |
|
|
|
|

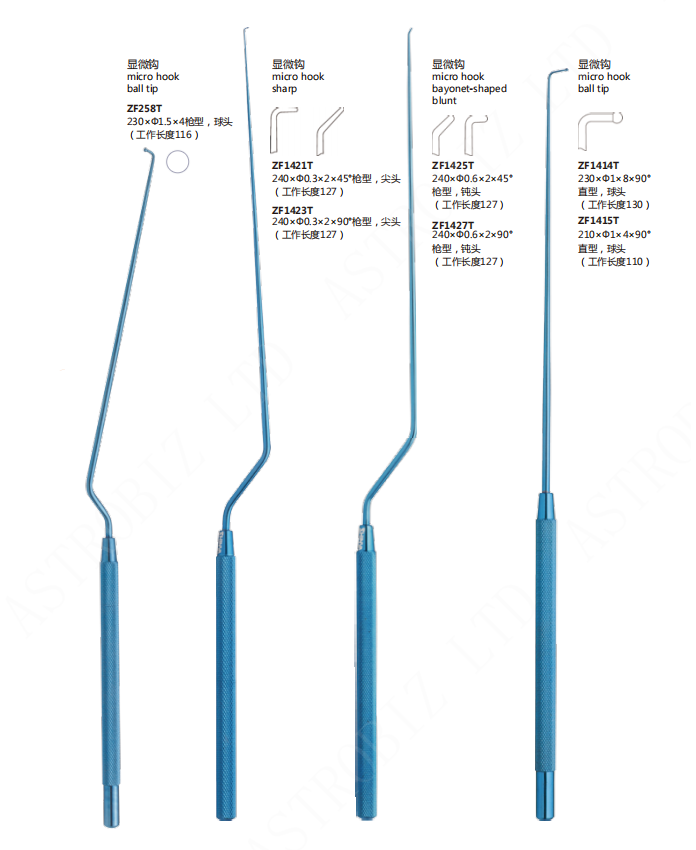

| ZF258T |
Micro hook, ball tip, gun-shaped (45°) |
230×Φ1.5×4 (working length 116) |
116 |
Ball tip, gun – shaped, 45° |
| ZF1421T |
Micro hook, sharp, gun-shaped (45°) |
240×Φ0.3×2×45° (working length 127) |
127 |
Sharp tip, gun – shaped, 45° |
| ZF1423T |
Micro hook, sharp, gun-shaped (90°) |
240×Φ0.3×2×90° (working length 127) |
127 |
Sharp tip, gun – shaped, 90° |
| ZF1425T |
Micro hook, blunt, gun-shaped (45°) |
240×Φ0.6×2×45° (working length 127) |
127 |
Blunt tip, gun – shaped, 45° |
| ZF1427T |
Micro hook, blunt, gun-shaped (90°) |
240×Φ0.6×2×90° (working length 127) |
127 |
Blunt tip, gun – shaped, 90° |
| ZF1414T |
Micro hook, ball tip, straight (90°) |
230×Φ1×8×90° (working length 130) |
130 |
Ball tip, straight, 90° |
| ZF1415T |
Micro hook, ball tip, straight (90°) |
210×Φ1×4×90° (working length 110) |
110 |
Ball tip, straight, 90° |
| Round, Semi – Circular, Etc. |
|
|
|
|

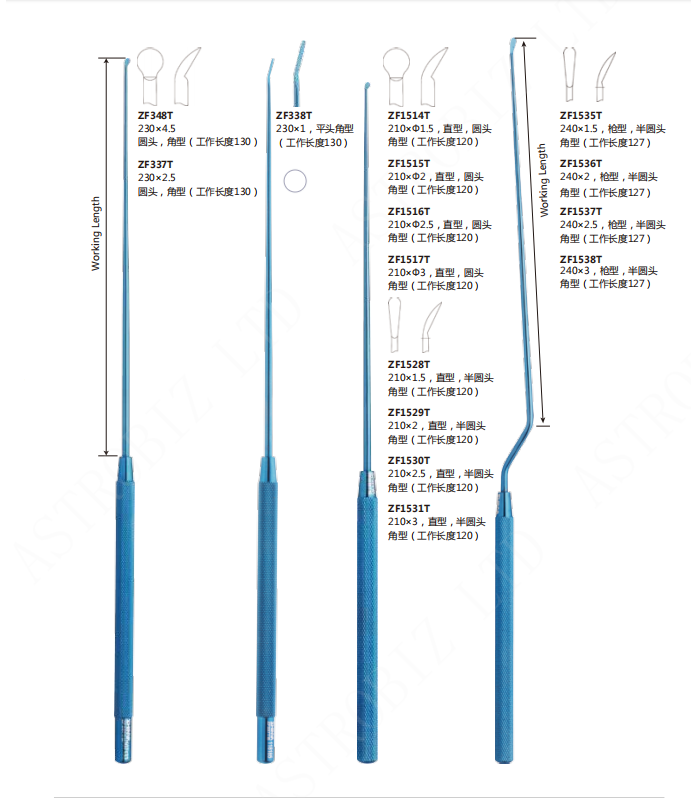

| ZF3348T |
Micro hook, round, curved |
230×Φ1.5 (working length 130) |
130 |
Round tip, curved |
| ZF337T |
Micro hook, round, curved |
230×2.5 (working length 130) |
130 |
Round tip, curved |
| ZF338T |
Micro hook, flat – angled tip |
230×1 (working length 130) |
130 |
Flat – angled tip |
| ZF1514T |
Micro hook, round, straight |
210×Φ1.5 (working length 120) |
120 |
Round tip, straight |
| ZF1515T |
Micro hook, round, angled |
210×Φ2 (working length 120) |
120 |
Round tip, angled |
| ZF1516T |
Micro hook, round, angled |
210×Φ2.5 (working length 120) |
120 |
Round tip, angled |
| ZF1517T |
Micro hook, round, angled |
210×Φ3 (working length 120) |
120 |
Round tip, angled |
| ZF1528T |
Micro hook, semi – circular, straight |
210×1.5 (working length 120) |
120 |
Semi – circular tip, straight |
| ZF1529T |
Micro hook, semi – circular, angled |
210×2 (working length 120) |
120 |
Semi – circular tip, angled |
| ZF1530T |
Micro hook, semi – circular, angled |
210×2.5 (working length 120) |
120 |
Semi – circular tip, angled |
| ZF1533T |
Micro hook, semi – circular, gun-shaped |
240×1.5 (working length 127) |
127 |
Semi – circular tip, gun – shaped |
| ZF1536T |
Micro hook, semi – circular, gun-shaped |
240×2 (working length 127) |
127 |
Semi – circular tip, gun – shaped |
| ZF1537T |
Micro hook, semi – circular, gun-shaped |
240×2.5 (working length 127) |
127 |
Semi – circular tip, gun – shaped |
| ZF1538T |
Micro hook, semi – circular, gun-shaped |
240×3 (working length 127) |
127 |
Semi – circular tip, gun – shaped |
| Leaf – Shaped, Etc. |
|
|
|
|

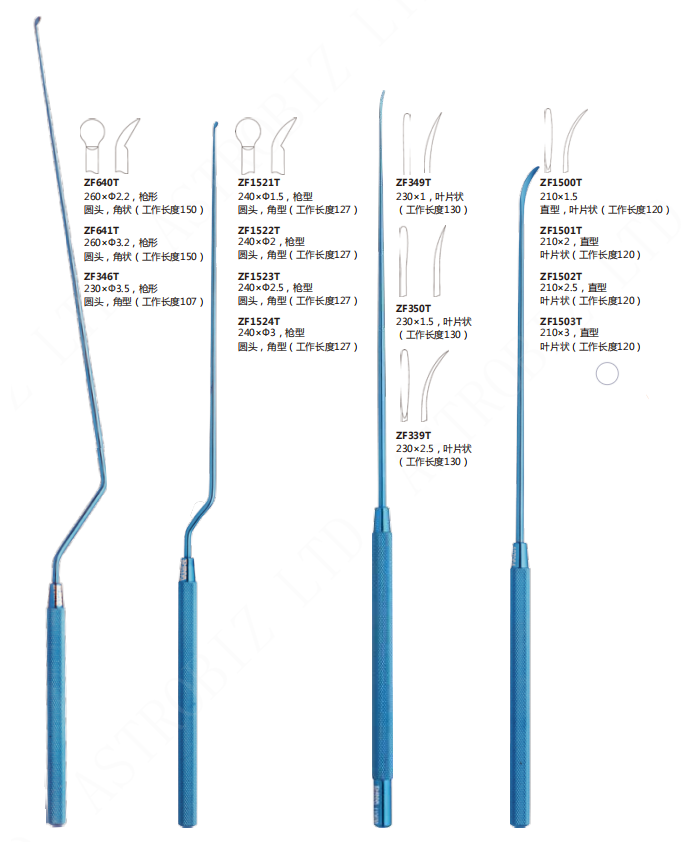

| ZF640T |
Micro hook, gun-shaped, round tip (45°) |
260×Φ2.2 (working length 150) |
150 |
Round tip, gun – shaped, 45° |
| ZF641T |
Micro hook, gun-shaped, round tip (45°) |
260×Φ3.2 (working length 150) |
150 |
Round tip, gun – shaped, 45° |
| ZF346T |
Micro hook, gun-shaped, round tip (curved) |
230×Φ3.5 (working length 107) |
107 |
Round tip, gun – shaped, curved |
| ZF1521T |
Micro hook, gun-shaped, round tip (angled) |
240×Φ1.5 (working length 127) |
127 |
Round tip, gun – shaped, angled |
| ZF1522T |
Micro hook, gun-shaped, round tip (angled) |
240×Φ2 (working length 127) |
127 |
Round tip, gun – shaped, angled |
| ZF1523T |
Micro hook, gun-shaped, round tip (angled) |
240×Φ2.5 (working length 127) |
127 |
Round tip, gun – shaped, angled |
| ZF1524T |
Micro hook, gun-shaped, round tip (angled) |
240×Φ3 (working length 127) |
127 |
Round tip, gun – shaped, angled |
| ZF349T |
Micro hook, leaf – shaped |
230×1 (working length 130) |
130 |
Leaf – shaped |
| ZF350T |
Micro hook, leaf – shaped |
230×1.5 (working length 130) |
130 |
Leaf – shaped |
| ZF339T |
Micro hook, leaf – shaped |
230×2.5 (working length 130) |
130 |
Leaf – shaped |
| ZF1500T |
Micro hook, leaf – shaped, straight |
210×1.5 (working length 120) |
120 |
Leaf – shaped, straight |
| ZF1501T |
Micro hook, leaf – shaped, straight |
210×2 (working length 120) |
120 |
Leaf – shaped, straight |
| ZF1502T |
Micro hook, leaf – shaped, straight |
210×2.5 (working length 120) |
120 |
Leaf – shaped, straight |
| ZF1503T |
Micro hook, leaf – shaped, straight |
210×3 (working length 120) |
120 |
Leaf – shaped, straight |
| Special Tips, Curettes |
|
|
|
|

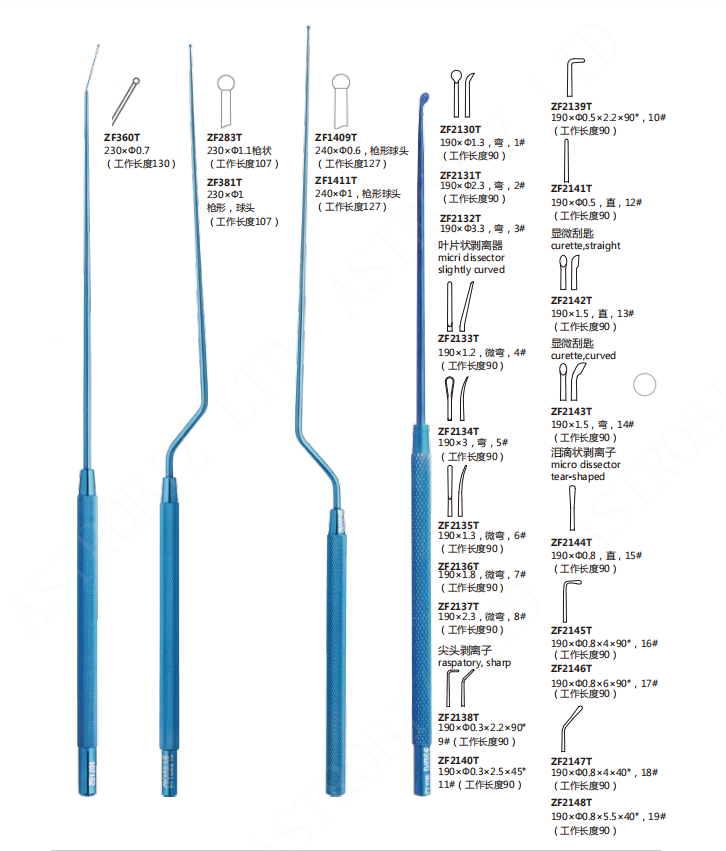

| ZF360T |
Micro hook, fine tip |
230×Φ0.7 (working length 130) |
130 |
Fine tip |
| ZF283T |
Micro hook, gun-shaped, ball tip (long 107°) |
230×Φ1.1 (working length 107) |
107 |
Ball tip, gun – shaped, long 107° |
| ZF381T |
Micro hook, gun-shaped, ball tip |
230×Φ1 (working length 107) |
107 |
Ball tip, gun – shaped |
| ZF1409T |
Micro hook, gun-shaped, ball tip (elliptical) |
240×Φ0.6 (working length 127) |
127 |
Elliptical ball tip, gun – shaped |
| ZF1411T |
Micro hook, gun-shaped, ball tip |
240×Φ1 (working length 127) |
127 |
Ball tip, gun – shaped |
| ZF2130T |
Micro curette, straight (1#) |
190×Φ0.3×2×90° (working length 90) |
90 |
Straight curette, 1# |
| ZF2131T |
Micro curette, straight (2#) |
190×Φ0.5 (working length 90) |
90 |
Straight curette, 2# |
| ZF2132T |
Micro curette, slightly curved (3#) |
190×Φ0.3 (working length 90) |
90 |
Slightly curved curette, 3# |
| ZF2133T |
Micro curette, slightly curved (4#) |
190×Φ1.2 (working length 90) |
90 |
Slightly curved curette, 4# |
| ZF2134T |
Micro curette, curved (5#) |
190×3 (working length 90) |
90 |
Curved curette, 5# |
| ZF2135T |
Micro curette, curved (6#) |
190×1.3 (working length 90) |
90 |
Curved curette, 6# |
| ZF2136T |
Micro curette, curved (7#) |
190×1.8 (working length 90) |
90 |
Curved curette, 7# |
| ZF2137T |
Micro curette, curved (8#) |
190×2.3 (working length 90) |
90 |
Curved curette, 8# |
| ZF2138T |
Micro curette, curved (9#) |
190×Φ0.3×2×90° (working length 90) |
90 |
Curved curette, 9# |
| ZF2140T |
Micro curette, curved (11#) |
190×Φ0.3×2.5×45° (working length 90) |
90 |
Curved curette, 11# |
| ZF2139T |
Micro hook, curved (10#) |
190×Φ0.5×2.2×90° (working length 90) |
90 |
Curved hook, 10# |
| ZF2141T |
Micro curette, straight (12#) |
190×Φ0.5 (working length 90) |
90 |
Straight curette, 12# |
| ZF2142T |
Micro curette, straight (13#) |
190×1.5 (working length 90) |
90 |
Straight curette, 13# |
| ZF2143T |
Micro dissector, tear – shaped (14#) |
190×1.5 (working length 90) |
90 |
Tear – shaped dissector, 14# |
| ZF2144T |
Micro curette, straight (15#) |
190×Φ0.8 (working length 90) |
90 |
Straight curette, 15# |
| ZF2145T |
Micro curette, curved (16#) |
190×Φ0.8×4×90° (working length 90) |
90 |
Curved curette, 16# |
| ZF2146T |
Micro curette, curved (17#) |
190×Φ0.8×6×30° (working length 90) |
90 |
Curved curette, 17# |
| ZF2147T |
Micro curette, curved (18#) |
190×Φ0.8×4×40° (working length 90) |
90 |
Curved curette, 18# |
| ZF2148T |
Micro curette, curved (19#) |
190×Φ0.8×5×40° (working length 90) |
90 |
Curved curette, 19# |
Microdissector
